| Brand Name : | Monte Bianco |
| Model Number : | N35-N52 (M.H.SH.UH.EH.AH) |
| Certification : | ISO9001, ISO14001, TS16949 |
| Price : | Negotiatial |
| Payment Terms : | T/T |
| Supply Ability : | 500k pcs/month |
| Delivery Time : | 10-30 working days after received your payment |

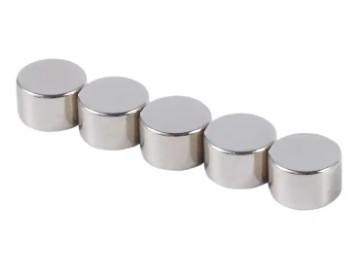

Custom Neodymium Magnets Round Super Powerful Strong NdFeB Neodymium Magnets
Sintered neodymium magnets are a powder metallurgy technology. Make the melted alloy into powder and press it into compact blocks in a magnetic field. The compactor is sintered in inert gas or vacuum to achieve densification. In order to improve the coercivity of magnets, aging heat treatment is usually required. From material preparation to finished product delivery, there are usually more than ten process steps, including several different stages of testing and analysis. The entire production process is a systematic engineering process, which is interconnected. Generally speaking, the production of neodymium iron boron is a large, complex, and interconnected system.
Sintered neodymium iron boron permanent magnet materials are divided into six categories based on the magnetic polarization strength and coercivity: low coercivity (without letters), medium coercivity M, high coercivity H, ultra-high coercivity SH, ultra-high coercivity UH, and extremely high coercivity EH.
Please see the following our neo magnet grade
| grade | Br | Hcb | Hcj | (BH)max | temperature coefficient | Max working temperature | |||||
| α Br | β Hcj | ||||||||||
| T | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | %/℃ | %/℃ | ℃ | |
| N54 | 1.45-1.48 | 14.5-14.8 | ≥836 | ≥10.5 | ≥876 | ≥11 | 415-461 | 52-58 | -0.12 | -0.65 | 80 |
| N52 | 1.42-1.45 | 14.2-14.8 | ≥836 | ≥10.5 | ≥876 | ≥11 | 398-415 | 50-52 | -0.12 | -0.65 | 80 |
| N50 | 1.40-1.42 | 14.0-14.5 | ≥836 | ≥10.5 | ≥955 | ≥12 | 374-398 | 47-50 | -0.12 | -0.65 | 80 |
| N48 | 1.37-1.40 | 13.7-14.2 | ≥836 | ≥10.5 | ≥955 | ≥12 | 358-374 | 45-48 | -0.12 | -0.65 | 80 |
| N45 | 1.32-1.37 | 13.2-13.7 | ≥836 | ≥10.5 | ≥955 | ≥12 | 342-358 | 43-45 | -0.12 | -0.65 | 80 |
| N42 | 1.29-1.32 | 12.9-13.2 | ≥836 | ≥10.5 | ≥955 | ≥12 | 318-334 | 40-42 | -0.12 | -0.65 | 80 |
| N40 | 1.26-1.29 | 12.6-12.9 | ≥836 | ≥10.5 | ≥955 | ≥12 | 303-318 | 38-40 | -0.12 | -0.65 | 80 |
| N38 | 1.22-1.26 | 12.2-12.6 | ≥859 | ≥10.8 | ≥955 | ≥12 | 287-303 | 36-38 | -0.12 | -0.65 | 80 |
| N35 | 1.17-1.21 | 11.7-12.1 | ≥859 | ≥10.8 | ≥955 | ≥12 | 263-279 | 33-35 | -0.12 | -0.65 | 80 |
| N33 | 1.14-1.17 | 11.4-11.7 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | -0.12 | -0.65 | 80 |
| N30 | 1.08-1.12 | 10.8-11.2 | ≥796 | ≥10.0 | ≥955 | ≥12 | 223-239 | 28-30 | -0.12 | -0.65 | 80 |
| N52M | 1.42-1.45 | 14.2-14.5 | ≥995 | 12.5 | ≥1114 | ≥14 | 389-422 | 49-53 | -0.12 | -0.65 | 100 |
| N50M | 1.39-1.45 | 13.9-14.5 | ≥1050 | ≥13.2 | ≥1114 | ≥14 | 374-406 | 47-51 | -0.12 | -0.65 | 100 |
| N48M | 1.37-1.42 | 13.7-14.2 | ≥1018 | ≥12.8 | ≥1114 | ≥14 | 366-390 | 46-49 | -0.12 | -0.65 | 100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1114 | ≥14 | 334-366 | 42-46 | -0.12 | -0.65 | 100 |
| N42M | 1.29-1.32 | 12.9-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-334 | 40-42 | -0.12 | -0.65 | 100 |
| N40M | 1.26-1.29 | 12.6-12.9 | ≥939 | ≥11.8 | ≥1114 | ≥14 | 303-318 | 38-40 | -0.12 | -0.65 | 100 |
| N38M | 1.22-1.26 | 12.2-12.6 | ≥916 | ≥11.5 | ≥1114 | ≥14 | 287-303 | 36-38 | -0.12 | -0.65 | 100 |
| N35M | 1.17-1.21 | 11.7-12.1 | ≥876 | ≥11.0 | ≥1114 | ≥14 | 263-279 | 33-35 | -0.12 | -0.65 | 100 |
| N33M | 1.14-1.17 | 11.4-11.7 | ≥852 | ≥10.7 | ≥1114 | ≥14 | 247-263 | 31-33 | -0.12 | -0.65 | 100 |
| N30M | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1114 | ≥14 | 223-239 | 28-30 | -0.12 | -0.65 | 100 |
| N52H | 1.42-1.45 | 14.2-14.5 | ≥1035 | ≥13.0 | ≥1353 | ≥16.5 | 398-422 | 50-53 | -0.11 | -0.58 | 120 |
| N50H | 1.39-1.42 | 13.9-14.2 | ≥1035 | ≥13.0 | ≥1353 | ≥17 | 374-398 | 47-50 | -0.11 | -0.58 | 120 |
| N48H | 1.36-1.42 | 13.6-14.2 | ≥1026 | ≥12.9 | ≥1353 | ≥17 | 358-374 | 45-49 | -0.11 | -0.58 | 120 |
| N45H | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1353 | ≥17 | 334-366 | 42-46 | -0.11 | -0.58 | 120 |
| N42H | 1.29-1.32 | 12.9-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-334 | 40-42 | -0.11 | -0.58 | 120 |
| N40H | 1.26-1.29 | 12.6-12.9 | ≥939 | ≥11.8 | ≥1353 | ≥17 | 303-318 | 38-40 | -0.11 | -0.62 | 120 |
| N38H | 1.22-1.26 | 12.2-12.6 | ≥916 | ≥11.6 | ≥1353 | ≥17 | 287-303 | 36-38 | -0.11 | -0.62 | 120 |
| N35H | 1.17-1.21 | 11.7-12.1 | ≥875 | ≥11.0 | ≥1353 | ≥17 | 263-279 | 33-35 | -0.11 | -0.62 | 120 |
| N33H | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥1353 | ≥17 | 247-263 | 31-33 | -0.11 | -0.62 | 120 |
| N30H | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1353 | ≥17 | 223-239 | 28-30 | -0.11 | -0.62 | 120 |
| N50SH | 1.39-1.42 | 13.9-14.2 | ≥1035 | ≥13.0 | ≥1500 | ≥19 | 398-415 | 47-50 | -0.11 | -0.6 | 150 |
| N48SH | 1.36-1.42 | 13.6-14.2 | ≥1026 | ≥12.9 | ≥1592 | ≥20 | 358-398 | 45-49 | -0.11 | -0.6 | 150 |
| N45SH | 1.32-1.36 | 13.2-13.6 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 334-366 | 42-46 | -0.11 | -0.6 | 150 |
| N42SH | 1.29-1.32 | 12.9-13.2 | ≥963 | ≥12.1 | ≥1592 | ≥20 | 318-334 | 40-42 | -0.11 | -0.6 | 150 |
| N40SH | 1.26-1.29 | 12.6-12.9 | ≥931 | ≥11.7 | ≥1592 | ≥20 | 303-318 | 38-40 | -0.11 | -0.6 | 150 |
| N38SH | 1.22-1.26 | 12.2-12.6 | ≥899 | ≥11.3 | ≥1592 | ≥20 | 287-303 | 36-38 | -0.11 | -0.6 | 150 |
| N35SH | 1.17-1.21 | 11.7-12.1 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-279 | 33-35 | -0.11 | -0.6 | 150 |
| N33SH | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥1592 | ≥20 | 247-263 | 31-33 | -0.11 | -0.6 | 150 |
| N30SH | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1592 | ≥20 | 223-239 | 28-30 | -0.11 | -0.6 | 150 |
| N45UH | 1.32-1.36 | 13.2-13.6 | ≥987 | ≥12.4 | ≥1990 | ≥25 | 334-366 | 42-46 | -0.1 | -0.55 | 180 |
| N42UH | 1.29-1.32 | 12.9-13.2 | ≥963 | ≥12.1 | ≥1990 | ≥25 | 318-334 | 40-42 | -0.1 | -0.55 | 180 |
| N40UH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1990 | ≥25 | 303-318 | 38-40 | -0.1 | -0.55 | 180 |
| N38UH | 1.22-1.26 | 12.2-12.6 | ≥915 | ≥11.5 | ≥1990 | ≥25 | 287-303 | 36-38 | -0.1 | -0.55 | 180 |
| N35UH | 1.17-1.21 | 11.7-12.1 | ≥875 | ≥11.0 | ≥1990 | ≥25 | 263-279 | 33-35 | -0.1 | -0.55 | 180 |
| N33UH | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥1990 | ≥25 | 247-263 | 31-33 | -0.1 | -0.55 | 180 |
| N30UH | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-239 | 28-30 | -0.1 | -0.55 | 180 |
| N38EH | 1.22-1.29 | 12.2-12.9 | ≥907 | ≥11.4 | ≥2388 | ≥30 | 287-318 | 36-40 | -0.09 | -0.5 | 200 |
| N35EH | 1.18-1.25 | 11.8-12.5 | ≥875 | ≥11.0 | ≥2388 | ≥30 | 263-295 | 33-37 | -0.09 | -0.5 | 200 |
| N33EH | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥2388 | ≥30 | 247-263 | 31-33 | -0.09 | -0.5 | 200 |
| N30EH | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-239 | 28-30 | -0.09 | -0.5 | 200 |
| N32AH | 1.12-1.20 | 10.8-12.0 | ≥860 | ≥10.8 | ≥2626 | ≥33 | 247-279 | 31-35 | -0.09 | -0.44 | 220 |
|
|
