| Brand Name : | Monte-Bianco |
| Model Number : | N35-N52 (M.H.SH.UH.EH.AH) |
| Certification : | ISO9001, ISO14001, TS16949 |
| Price : | Negotiatial |
| Payment Terms : | T/T |
| Supply Ability : | 500k pcs/month |
| Delivery Time : | 15-30 working days after received your payment |

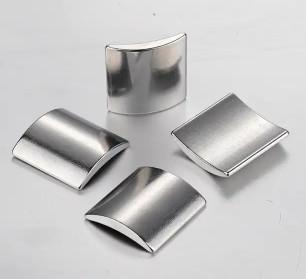

Arc NdFeB Permanent Magnet Customized Size N35-52 Magnet For Generator
Neodymium iron boron magnets are used in almost all industries, and common permanent magnet motors include permanent magnet DC motors and permanent magnet AC motors. Permanent magnet DC motors are divided into brush DC motors, brushless motors, stepper motors, and so on.
Due to the excellent magnetism of neodymium magnet materials, a permanent magnetic field can be established without the need for additional energy after magnetization. Replacing traditional electric field with rare earth permanent magnet motors not only has high efficiency, but also has simple structure, reliable operation, small volume, and light weight. It can not only achieve high performance that traditional electric excitation motors cannot match (such as ultra-high efficiency, ultra-high speed, ultra-high response speed), but also meet the operational requirements of special motors such as elevator traction motors and automotive motors.
Please see the following our neo magnet grade.
| grade | Br | Hcb | Hcj | (BH)max | temperature coefficient | Max working temperature | |||||
| α Br | β Hcj | ||||||||||
| T | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | %/℃ | %/℃ | ℃ | |
| N54 | 1.45-1.48 | 14.5-14.8 | ≥836 | ≥10.5 | ≥876 | ≥11 | 415-461 | 52-58 | -0.12 | -0.65 | 80 |
| N52 | 1.42-1.45 | 14.2-14.8 | ≥836 | ≥10.5 | ≥876 | ≥11 | 398-415 | 50-52 | -0.12 | -0.65 | 80 |
| N50 | 1.40-1.42 | 14.0-14.5 | ≥836 | ≥10.5 | ≥955 | ≥12 | 374-398 | 47-50 | -0.12 | -0.65 | 80 |
| N48 | 1.37-1.40 | 13.7-14.2 | ≥836 | ≥10.5 | ≥955 | ≥12 | 358-374 | 45-48 | -0.12 | -0.65 | 80 |
| N45 | 1.32-1.37 | 13.2-13.7 | ≥836 | ≥10.5 | ≥955 | ≥12 | 342-358 | 43-45 | -0.12 | -0.65 | 80 |
| N42 | 1.29-1.32 | 12.9-13.2 | ≥836 | ≥10.5 | ≥955 | ≥12 | 318-334 | 40-42 | -0.12 | -0.65 | 80 |
| N40 | 1.26-1.29 | 12.6-12.9 | ≥836 | ≥10.5 | ≥955 | ≥12 | 303-318 | 38-40 | -0.12 | -0.65 | 80 |
| N38 | 1.22-1.26 | 12.2-12.6 | ≥859 | ≥10.8 | ≥955 | ≥12 | 287-303 | 36-38 | -0.12 | -0.65 | 80 |
| N35 | 1.17-1.21 | 11.7-12.1 | ≥859 | ≥10.8 | ≥955 | ≥12 | 263-279 | 33-35 | -0.12 | -0.65 | 80 |
| N33 | 1.14-1.17 | 11.4-11.7 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | -0.12 | -0.65 | 80 |
| N30 | 1.08-1.12 | 10.8-11.2 | ≥796 | ≥10.0 | ≥955 | ≥12 | 223-239 | 28-30 | -0.12 | -0.65 | 80 |
| N52M | 1.42-1.45 | 14.2-14.5 | ≥995 | 12.5 | ≥1114 | ≥14 | 389-422 | 49-53 | -0.12 | -0.65 | 100 |
| N50M | 1.39-1.45 | 13.9-14.5 | ≥1050 | ≥13.2 | ≥1114 | ≥14 | 374-406 | 47-51 | -0.12 | -0.65 | 100 |
| N48M | 1.37-1.42 | 13.7-14.2 | ≥1018 | ≥12.8 | ≥1114 | ≥14 | 366-390 | 46-49 | -0.12 | -0.65 | 100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1114 | ≥14 | 334-366 | 42-46 | -0.12 | -0.65 | 100 |
| N42M | 1.29-1.32 | 12.9-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-334 | 40-42 | -0.12 | -0.65 | 100 |
| N40M | 1.26-1.29 | 12.6-12.9 | ≥939 | ≥11.8 | ≥1114 | ≥14 | 303-318 | 38-40 | -0.12 | -0.65 | 100 |
| N38M | 1.22-1.26 | 12.2-12.6 | ≥916 | ≥11.5 | ≥1114 | ≥14 | 287-303 | 36-38 | -0.12 | -0.65 | 100 |
| N35M | 1.17-1.21 | 11.7-12.1 | ≥876 | ≥11.0 | ≥1114 | ≥14 | 263-279 | 33-35 | -0.12 | -0.65 | 100 |
| N33M | 1.14-1.17 | 11.4-11.7 | ≥852 | ≥10.7 | ≥1114 | ≥14 | 247-263 | 31-33 | -0.12 | -0.65 | 100 |
| N30M | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1114 | ≥14 | 223-239 | 28-30 | -0.12 | -0.65 | 100 |
| N52H | 1.42-1.45 | 14.2-14.5 | ≥1035 | ≥13.0 | ≥1353 | ≥16.5 | 398-422 | 50-53 | -0.11 | -0.58 | 120 |
| N50H | 1.39-1.42 | 13.9-14.2 | ≥1035 | ≥13.0 | ≥1353 | ≥17 | 374-398 | 47-50 | -0.11 | -0.58 | 120 |
| N48H | 1.36-1.42 | 13.6-14.2 | ≥1026 | ≥12.9 | ≥1353 | ≥17 | 358-374 | 45-49 | -0.11 | -0.58 | 120 |
| N45H | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1353 | ≥17 | 334-366 | 42-46 | -0.11 | -0.58 | 120 |
| N42H | 1.29-1.32 | 12.9-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-334 | 40-42 | -0.11 | -0.58 | 120 |
| N40H | 1.26-1.29 | 12.6-12.9 | ≥939 | ≥11.8 | ≥1353 | ≥17 | 303-318 | 38-40 | -0.11 | -0.62 | 120 |
| N38H | 1.22-1.26 | 12.2-12.6 | ≥916 | ≥11.6 | ≥1353 | ≥17 | 287-303 | 36-38 | -0.11 | -0.62 | 120 |
| N35H | 1.17-1.21 | 11.7-12.1 | ≥875 | ≥11.0 | ≥1353 | ≥17 | 263-279 | 33-35 | -0.11 | -0.62 | 120 |
| N33H | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥1353 | ≥17 | 247-263 | 31-33 | -0.11 | -0.62 | 120 |
| N30H | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1353 | ≥17 | 223-239 | 28-30 | -0.11 | -0.62 | 120 |
| N50SH | 1.39-1.42 | 13.9-14.2 | ≥1035 | ≥13.0 | ≥1500 | ≥19 | 398-415 | 47-50 | -0.11 | -0.6 | 150 |
| N48SH | 1.36-1.42 | 13.6-14.2 | ≥1026 | ≥12.9 | ≥1592 | ≥20 | 358-398 | 45-49 | -0.11 | -0.6 | 150 |
| N45SH | 1.32-1.36 | 13.2-13.6 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 334-366 | 42-46 | -0.11 | -0.6 | 150 |
| N42SH | 1.29-1.32 | 12.9-13.2 | ≥963 | ≥12.1 | ≥1592 | ≥20 | 318-334 | 40-42 | -0.11 | -0.6 | 150 |
| N40SH | 1.26-1.29 | 12.6-12.9 | ≥931 | ≥11.7 | ≥1592 | ≥20 | 303-318 | 38-40 | -0.11 | -0.6 | 150 |
| N38SH | 1.22-1.26 | 12.2-12.6 | ≥899 | ≥11.3 | ≥1592 | ≥20 | 287-303 | 36-38 | -0.11 | -0.6 | 150 |
| N35SH | 1.17-1.21 | 11.7-12.1 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-279 | 33-35 | -0.11 | -0.6 | 150 |
| N33SH | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥1592 | ≥20 | 247-263 | 31-33 | -0.11 | -0.6 | 150 |
| N30SH | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1592 | ≥20 | 223-239 | 28-30 | -0.11 | -0.6 | 150 |
| N45UH | 1.32-1.36 | 13.2-13.6 | ≥987 | ≥12.4 | ≥1990 | ≥25 | 334-366 | 42-46 | -0.1 | -0.55 | 180 |
| N42UH | 1.29-1.32 | 12.9-13.2 | ≥963 | ≥12.1 | ≥1990 | ≥25 | 318-334 | 40-42 | -0.1 | -0.55 | 180 |
| N40UH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1990 | ≥25 | 303-318 | 38-40 | -0.1 | -0.55 | 180 |
| N38UH | 1.22-1.26 | 12.2-12.6 | ≥915 | ≥11.5 | ≥1990 | ≥25 | 287-303 | 36-38 | -0.1 | -0.55 | 180 |
| N35UH | 1.17-1.21 | 11.7-12.1 | ≥875 | ≥11.0 | ≥1990 | ≥25 | 263-279 | 33-35 | -0.1 | -0.55 | 180 |
| N33UH | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥1990 | ≥25 | 247-263 | 31-33 | -0.1 | -0.55 | 180 |
| N30UH | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-239 | 28-30 | -0.1 | -0.55 | 180 |
| N38EH | 1.22-1.29 | 12.2-12.9 | ≥907 | ≥11.4 | ≥2388 | ≥30 | 287-318 | 36-40 | -0.09 | -0.5 | 200 |
| N35EH | 1.18-1.25 | 11.8-12.5 | ≥875 | ≥11.0 | ≥2388 | ≥30 | 263-295 | 33-37 | -0.09 | -0.5 | 200 |
| N33EH | 1.14-1.17 | 11.4-11.7 | ≥851 | ≥10.7 | ≥2388 | ≥30 | 247-263 | 31-33 | -0.09 | -0.5 | 200 |
| N30EH | 1.08-1.12 | 10.8-11.2 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-239 | 28-30 | -0.09 | -0.5 | 200 |
| N32AH | 1.12-1.20 | 10.8-12.0 | ≥860 | ≥10.8 | ≥2626 | ≥33 | 247-279 | 31-35 | -0.09 | -0.44 | 220 |
We accept customized services:
1. Shape and Dimension Requirements
2. Material and coating requirements
3. Processing according to design drawings
4. Requirements for Magnetization Direction
5. Magnet Grade Requirements
6. Surface treatment requirements (plating requirements)
|
|
